- Photo may represent series and not specific product
- SHARE
| Nominal Length |
Grip Length |
Part Number | Drilled | Undrilled |
|---|---|---|---|---|
| 5/8 | 1/16 | AN45-4 | $88.90 | -- |
| 7/8 | 5/16 | AN45-6 | $49.95 | $19.50 |
| 1 | 7/16 | AN45-7 | $28.50 | $31.60 |
| 1-1/4 | 13/16 | AN45-12 | $35.50 | $68.75 |
| 1-38 | 15/16 | AN45-13 | $57.75 | $35.50 |
| 1-1/2 | 1-1/16 | AN45-14 | $59.75 | $35.50 |
| 1-5/8 | 1-3/16 | AN45-15 | $46.50 | $40.80 |
| 2 | 1-9/16 | AN45-20 | $84.80 | $62.75 |
| 2-1/2 | 2-1/16 | AN45-24 | $45.50 | -- |
| 2-7/8 | 2-7/16 | AN45-27 | $54.80 | $41.55 |
| 3 | 2-9/16 | AN45-30 | $36.50 | -- |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

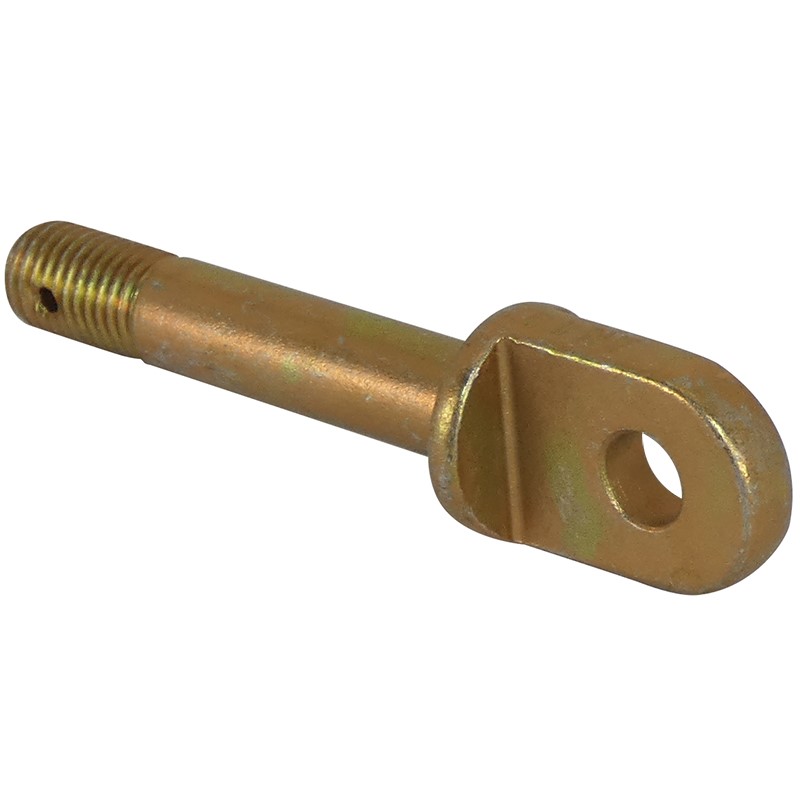

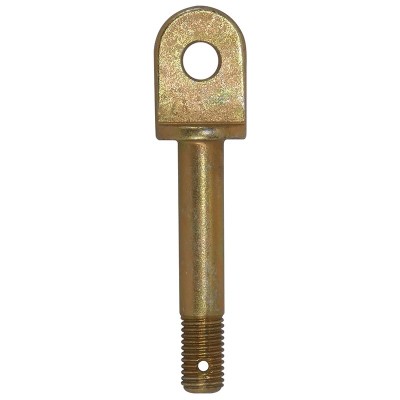

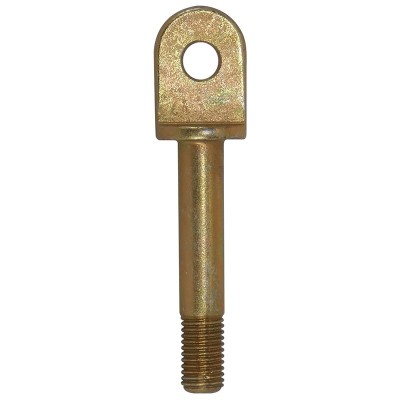

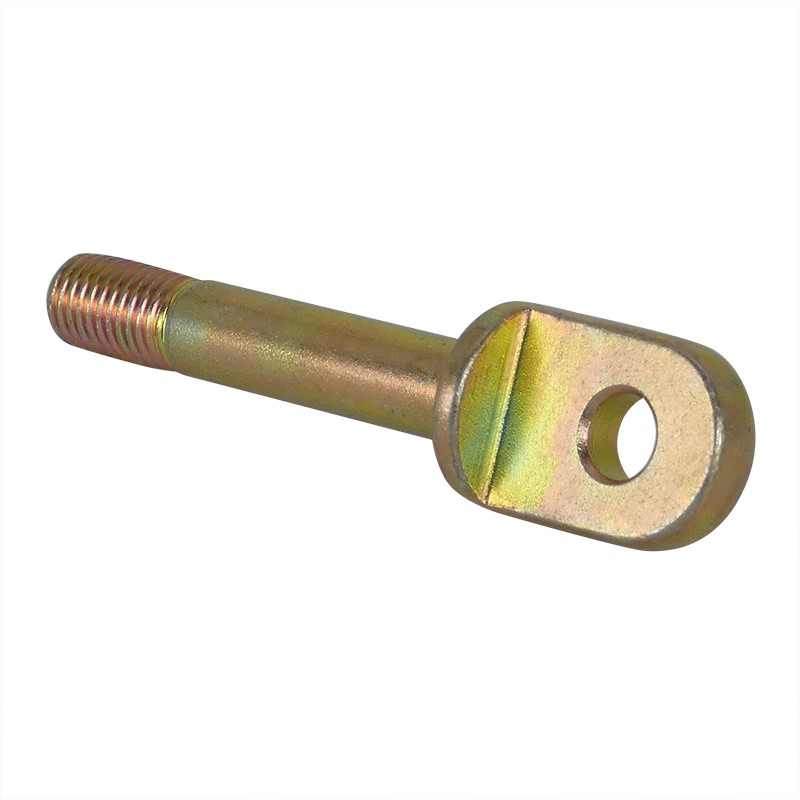

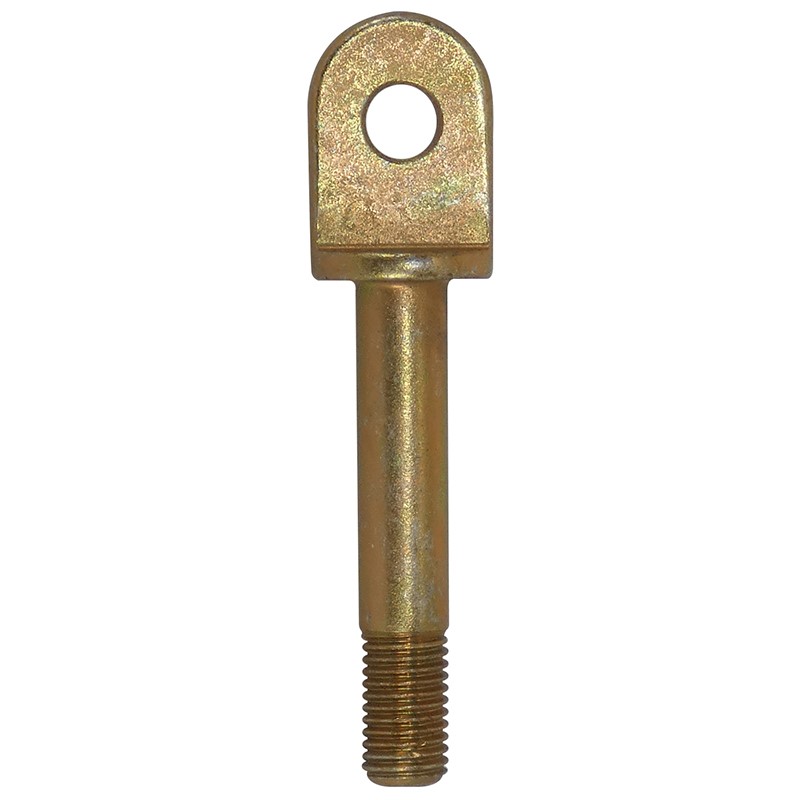

Eye bolts are special purpose bolts to be used where external tension loads are to be applied. The eye is designed for attachment of such devices as a turnbuckle fork, a clevis or a cable shackle. Manufactured and plated in same manner as AN3 - AN8 bolts . Minimum tensile strength 125, 000 PSI . Eye bolts will be furnished with either drilled or undrilled shank subject to stock on hand. Add letter "A" after dash number for undrilled shank.
Shank 5/16". Hole 5/16". Thread 5/16-24. For "Undrilled" use "A" at end of part number. |
Reviews
Verified Purchase
Eye Bolt Drilled AN45-4
Received one part in the lot of 39 pieces that was the wrong length.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The AN45 bolts are 5/16-24. Yes, the grip is the unthreaded portion of the bolt.
No, these are cadmium plated.
11/16
