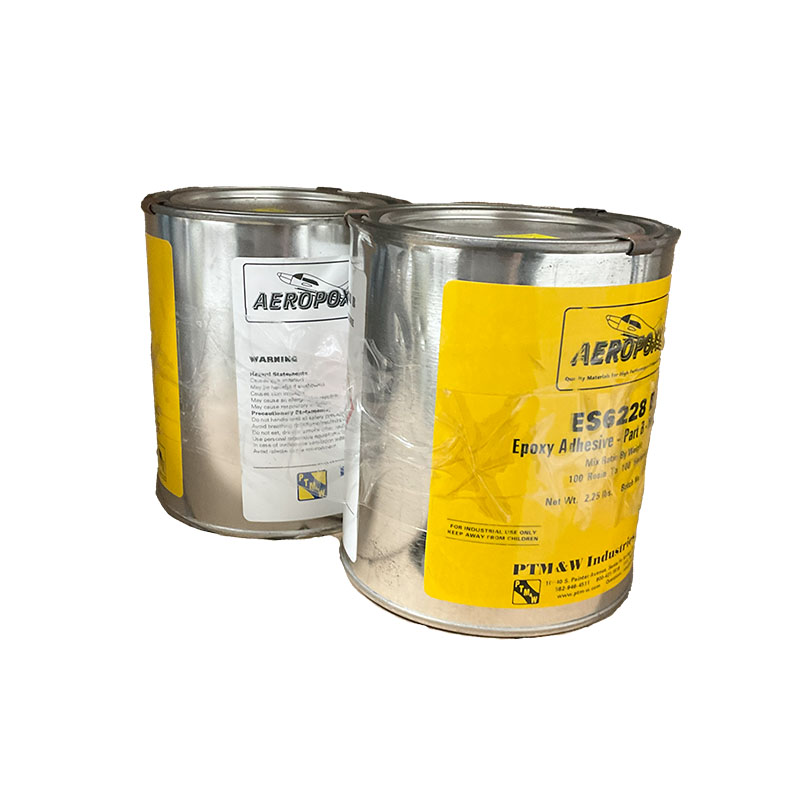

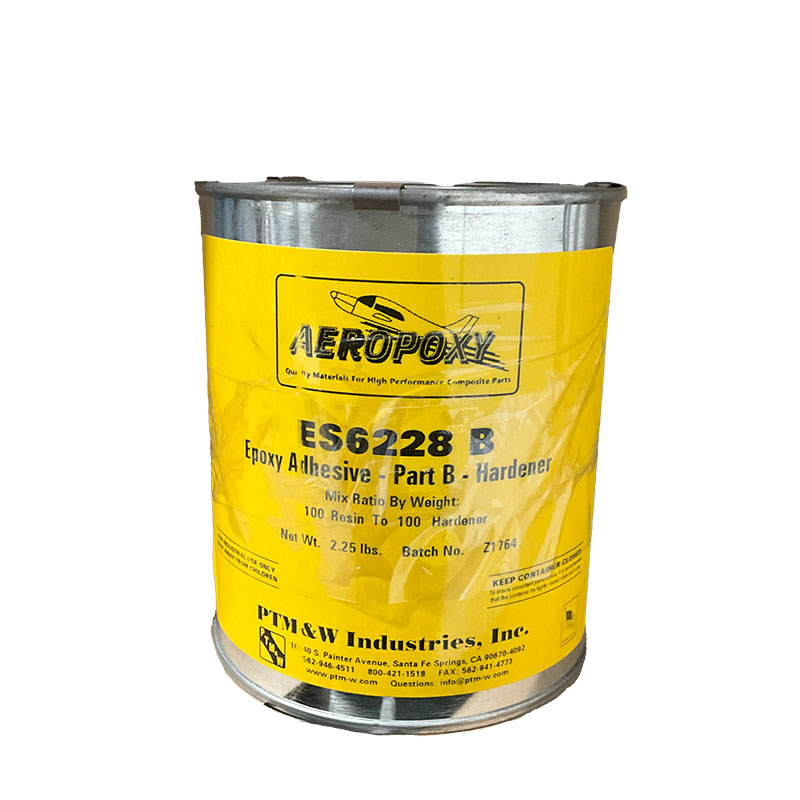

ES6228 is a thin paste viscosity epoxy adhesive designed to provide good bonds to metal surfaces. A unique feature of ES6228 is its ability to bond to slightly oily metal surfaces. this is useful in situations where the complete removal of residual mill oil on metal surfaces is not possible. The thin paste consistency of ES6228 wets the metal surface well, for good adhesion. this viscosity also provides some gap filling capabilities, so "close-fitting" joints are adequate, and matched-metal joints are not required. ES6228 has a 1 to 1 mix ratio, by weight or volume, for easy measuring. The white resin and black hardener combine to a smooth gray system that is easy to mix and apply. The cured material has very good properties, with high bond strength and elongation, for tough, durable assemblies. |
ES6228-A | ES6228-B | Test Method | |
Color | White | Black | Visual |
Viscosity, cps | Thin Paste | Thin Paste | ASTM D2393 |
Specific Gravity | 1.32 | 1.30 | ASTM D1475 |
Density, lb/cu in | 0.477 | .0470 | ASTM D792 |
Mix Ratio | 100: 100 by weight or volume | PTM&W |
Pint Kit | Quart Kit | Gallon Kit | Pail Kit | |
ES6228-A | 1 lb. | 2.25 lb. | 9 lb. | 45 lb. |
ES6228-B | 1 lb. | 2.25 lb. | 9 lb. | 45 lb. |
Kit | 2 lb. | 4.5 lb. | 18 lb. | 90 lb. |
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
ES6228 A or B contains no metallic fillers. The B has black pigment in it which is where the color comes from.
