Composite Lsa Panel Power 14V

$1100.00/Each
Part# 11-09206

Overview

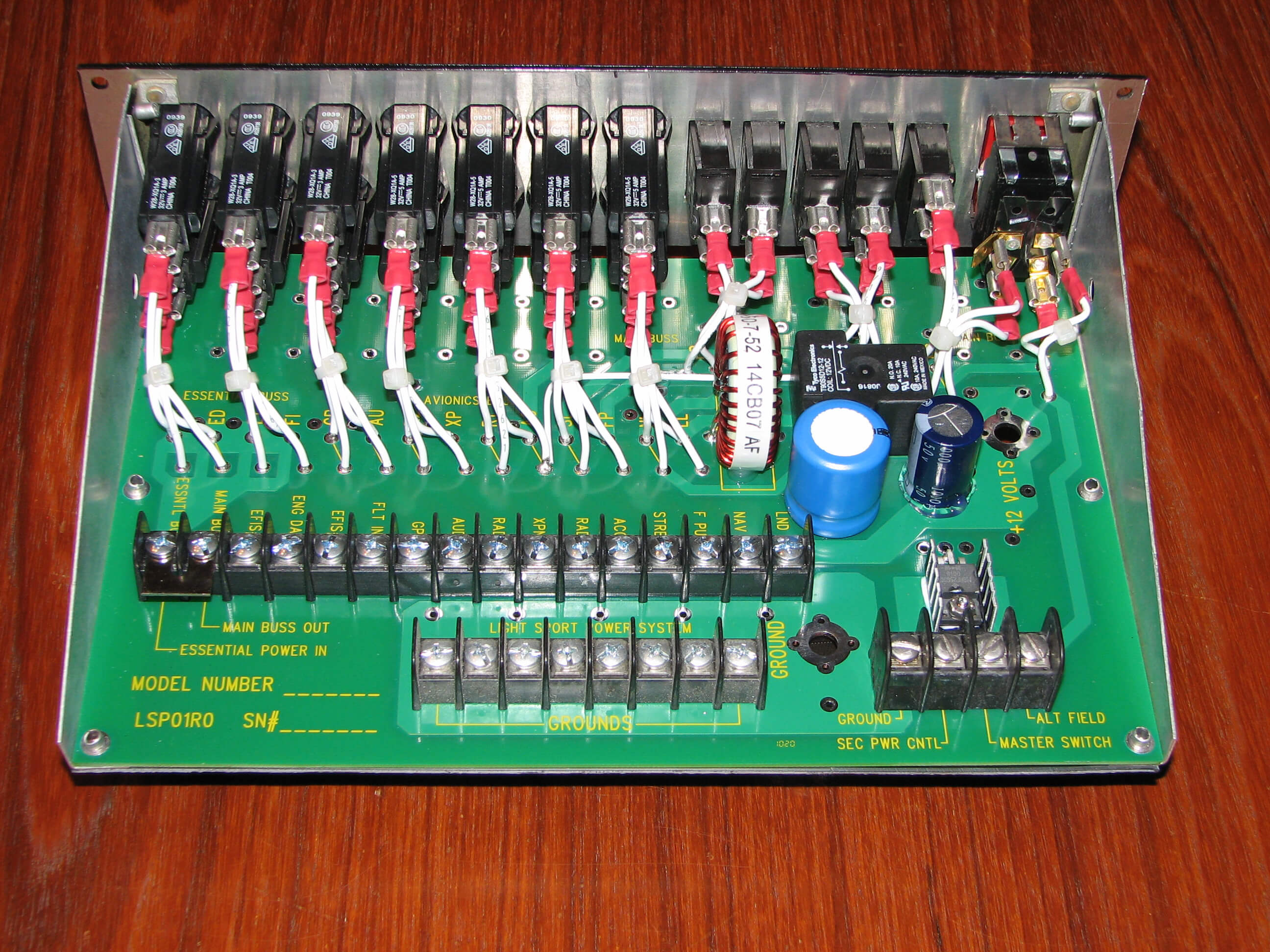

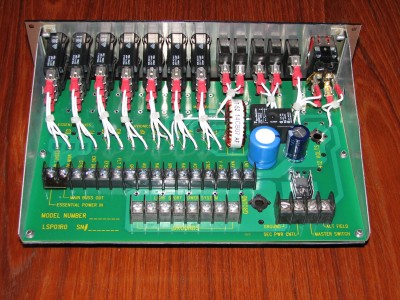

The Composite Design Light Sport Power Panel is a new product designed for LSA aircraft. Like the successful Standard and Mini Power Panels, it shares the same design philosophy, ruggedness and quality that all Composite Design panels have been known for since 1991.

Specifications

  • Dimensions: 2.375”H x 10.50”W x 7.00”D
  • Weight: approx. 2.50 pounds
  • Panel Specifications:
    Capacity:17.5V max. at 60A (Main Buss)
    Radio Buss: 15A cont.
    Essential Buss: 10A cont.
  • Switches: Master
    Alternator Field
    Radio Master
    Landing Light
    Strobe Lights
    Nav Lights
    Fuel Pump
  • Circuit Breakers – Main Buss:
    Landing Light
    Strobes
    Nav Lights
    Fuel Pump
    Engine Accessories
  • Circuit Breakers – Radio Buss:
    Radio 1
    Radio 2
    Transponder
    GPS
    Audio
  • Circuit Breakers – Essential Buss:
    EFIS 1
    EFIS 2
    Flight Inst
    Engine Data
  • This Panel has Essential Buss back-up capability for use with the Composite Design Power Guard Module and back-up battery (part number 11-02044)
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I have a 60amp alternator, would this Lightsport power panel be suitable?

Yes, this panel will work.

Q: What is the size of the cut-out required to mount the Light sport power panel?

The dimensions of the unit are 2.375h x 10.50w x 7.00d. we unfortunately do not have panel cutout information for this part.

Q: It notes 14v, but will this work with a 12v system?

Yes, this will work on 12v and 14v systems.

Q: Can this be used in certified aircraft?

This is made for a Light Sport Aircraft and holds no certification for certified aircraft. There maybe a chance for a 337 field approval from your mechanic.
