Single Lug Plate Nut Drill Jig

From $86.75 to $90.75

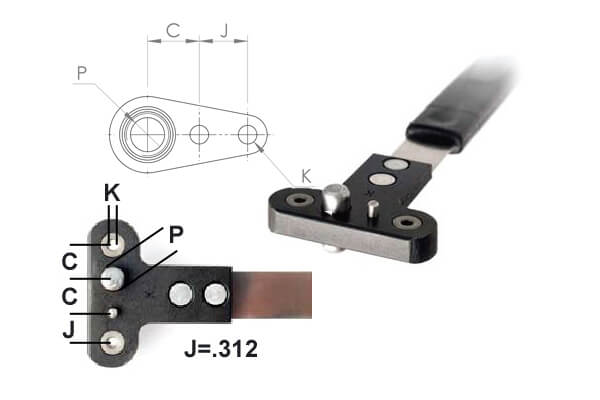

Mfr. PN Nut Thread
Reference
(C) Hole
Spacing
(P) Pilot
Diameter
(K) Drill
Size
Part Number Price Buy
NPJ518G6-32.344.1390#40
12-04781
$86.75
Quantity
NPJ518H8-32.344.1640#40
12-04783
$89.75
Quantity
NPJ518J10-32.344.1910#40
12-04784
$90.75
Quantity
NPJ518K1/4-28.344.2480#40
12-04785
$86.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

NPJ518G Single Wing Standard Nut Plate Drill Jig (SWS) Features:
  • Single Wing Standard Nut Plate Drill Jigs are designed to facilitate accurate rivet hole drilling for standard plate nuts.
  • Nut Plate Drill Jigs are known as Anchor Nuts Or Nut Plates.
  • Omega Technologies' hand-held Nut Plate Drill Jigs are manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing.
  • Every Nut Plate Drill Jig features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Good product. Flexable handle to get in tight areas

Bobby M Verified Purchase

Single Lug Plate Nut Drill Jig 6-32

December 9, 2023

Works great

Freeland A Verified Purchase

Single Lug Plate Nut Drill Jig 8-32

April 19, 2023

Works great

Freeland A Verified Purchase

Single Lug Plate Nut Drill Jig 8-32

April 19, 2023

Exactly what I ordered, turned up well packed and in good order, thank you.

Neil W Verified Purchase

Single Lug Plate Nut Drill Jig 8-32

August 28, 2021

Works well, can also do the job for a 2 lug drill jig if you have room to flip to opposite side.

Gary K
October 1, 2017
