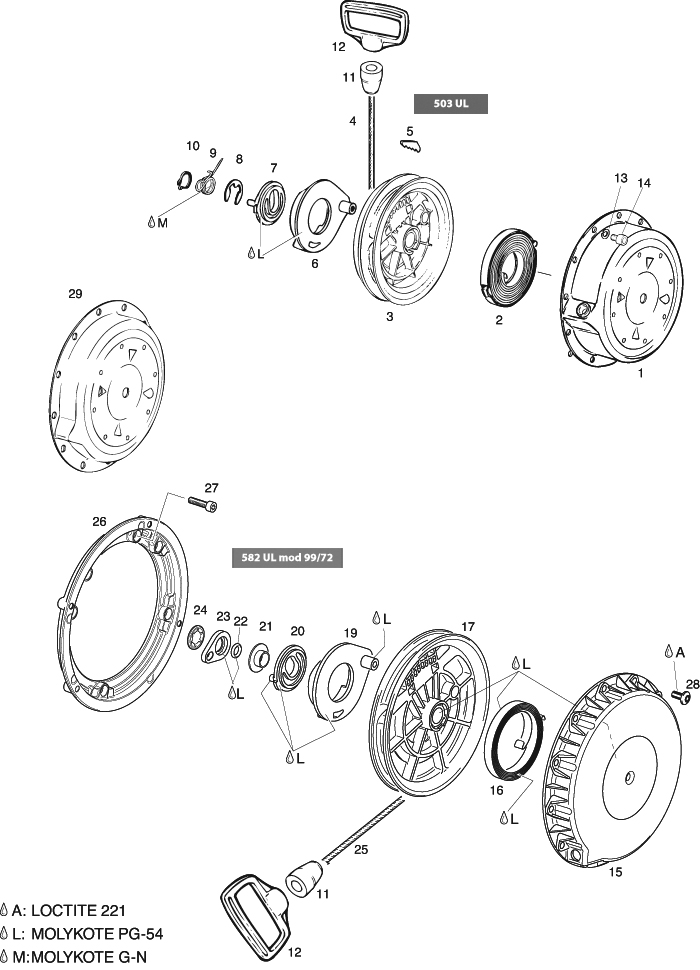

(Hover to zoom | Use mouse wheel for +/-)
No. | Rotax Part Number | Description | Qty Req. 503 UL | Qty Req. 582 UL | PN | Price | Buy |
---|---|---|---|---|---|---|---|
4 | 852-094 | STARTER ROPE 5,5X30000 (SEE NOTE BELOW) | NBf | 15-01557 | $1.27 | ||
5 | 852-070 | KEY CLAMP | 1 | 15-01555 | $4.35 | ||
6 | 852-290 | PAWL | 1 | 15-01567 | $26.75 | ||
8 | 845-300 | RETAINING RING 15 | 1 | 15-01297 | $2.12 | ||
10 | 945-770 | SNAP RING AV 17 | 1 | 15-03374 | $1.27 | ||
14 | 241-236 | ALLEN SCREW M6X16 | 4 | 4 | 15-00169 | $0.63 | |
22 | 250-400 | O-RING 12X3,5 | 1 | 15-00259 | $3.35 | ||
23 | 852-520 | LOCK LEVER | 1 | 15-01597 | $3.95 | ||
26 | 810-866 | CONNECTING FLANGE | 1 | 15-00728 | $111.75 | ||
27 | 241-231 | ALLEN SCREW M6X16 | 4 | 15-00168 | $1.32 |
- Items not illustrated
Explanations of symbols and statements in part number charts:
|
No. | Status | Part No. | Description | 447 | 503 | 582 m90 | 582 m99 | 618 | Price |
4 | STARTER ROPE 5,5X1700 MM | 1a | 1a | 1a | 1a | * | |||
4 | STARTER ROPE 5,5X2600 MM | 1b | 1b | 1b | 1b | * | |||
4 | STARTER ROPE 5,5X3200 MM | 1c | 1c | 1c | 1c | * | |||
4 | STARTER ROPE 5,5X3700 MM | 1d | 1d | 1d | 1d | * | |||
11,12, 15-25 | N | 892-800 | REWIND STARTER SET | 1eg | |||||
19 | N | 852-630 | PAWL | 1 | * | ||||
20 | N | 852-304 | PAWL LOCK | 1 | * | ||||
25 | STARTER ROPE 5,3X2200 | 1e | * | ||||||
25 | STARTER ROPE 5,5X3700 MM | 1d | * |
Worked as it should
ROTAX 852-094 STARTER ROPE
