Home / Rotax Engines & Parts / Parts / Two Stroke Parts / 503UL /Rotax 503 Ul Ducati Magneto Generator 12V 170W | Starting Pulley
Main Image

Rotax 503 Ul Ducati Magneto Generator 12V 170W | Starting Pulley

1 Review 0 Answered Questions
From $0.42 to $41.50

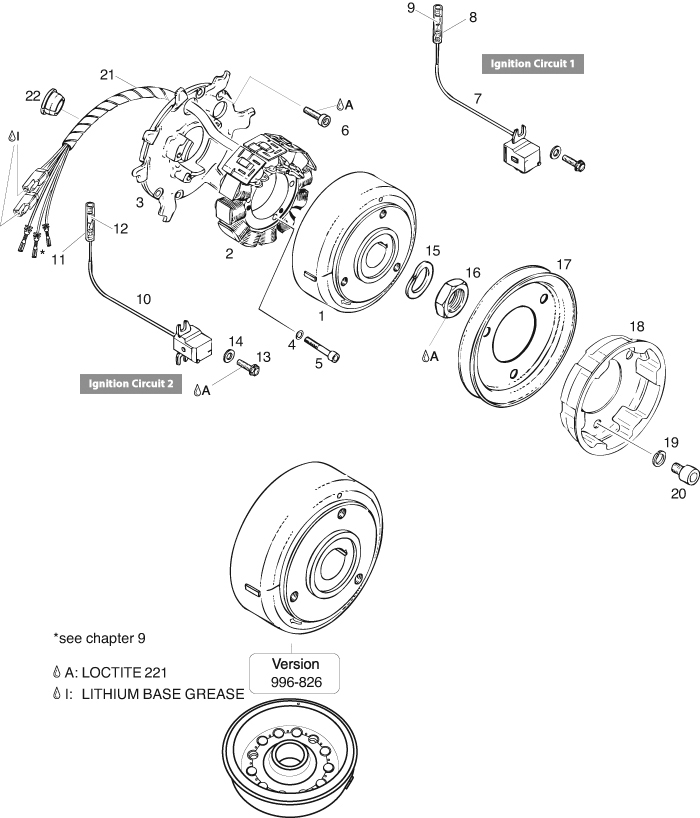

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty PN Price Buy
4945-750LOCK WASHER A55
07-00435
$2.81
Quantity
5940-880ALLEN SCREW M5X303
15-03232
$0.85
Quantity
8964-072INSULATION SHEATH1
15-03812
$2.15
Quantity
9964-067FASTON CONNECTOR 3,961
15-03811
$2.15
Quantity
13941-925TAPTITE SCREW M5X164
15-03287
$1.18
Quantity
14827-800WASHER A 5,5 DIN 69024
15-00860
$0.42
Quantity
15945-759LOCK WASHER 221
15-03367
$1.64
Quantity
16842-239HEX. NUT M22X1,51
15-01245
$12.55
Quantity
18852-412STARTING PULLEY1
15-01591
$41.50
Quantity
22860-962CABLE GROMMET 24, 5/111c
15-01743
$9.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   for ignition circuit 1
  • b   for ignition circuit 2
  • c   from engine S/N: 4,795.397
  • d   in a roll
  • e   magneto flywheel new version (with closed cage), Torx screw also valid for old version. At disassembly and reassembly of the screw
         the thread has to be cleaned of the remaining coating and secured with Loctite 221. As an alternative a new screw can be used
BR>
Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

*THIS ITEM CAN USE 11-12316(SOLD PER FOOT)

No.
Status
Part No.
 Descriptions
Qty.
21
966-060
 SPIRAL HOSE 70 MM
1
