Two-Lug Mini Plate Nut Drill Jig

From $81.75 to $85.99
Mfr. PN Nut Thread
Reference
(C) Hole
Spacing
(J) Hole
Spacing
(P) Pilot
Diameter
(K) Drill
Size
Part Number Price Buy
NPJ518NB6-320.21800.43600.1390#40
12-04794
$81.75
Quantity
NPJ518NC8-320.23400.46800.1640#40
12-04795
$85.99
Quantity
NPJ518ND10-320.25000.50000.1910#40
12-04796
$82.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

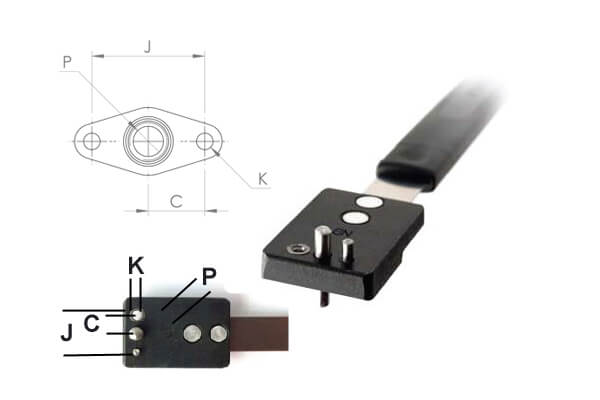

Two-Lug Double Wing Miniature Nut Plate Drill Jig (DWM) Features:
  • Two-Lug Double Wing Miniature Nut Plate Drill Jigs are designed to facilitate accurate rivet hole drilling for standard plate nuts.
  • Nut Plate Drill Jigs are known as Anchor Nuts Or Nut Plates.
  • Omega Technologies' hand-held Nut Plate Drill Jigs are manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing.
  • Every Nut Plate Drill Jig features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Perfect little helper to locate and to drill both of the holes for the rivets for the nut plate

Erno O Verified Purchase

Two-Lug Mini Plate Nut Drill Jig 10-32

June 6, 2023

Works perfectly

John E Verified Purchase

Two-Lug Mini Plate Nut Drill Jig 8-32

February 12, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can you confirm this tool is suitable for MS21059L06 anchor nuts (Part #: F5000-06)?

The 12-04794 is used for miniature anchor nuts, the F5000-06 is a standard size, and would use a 12-03041 tool to drill the mounting holes.
