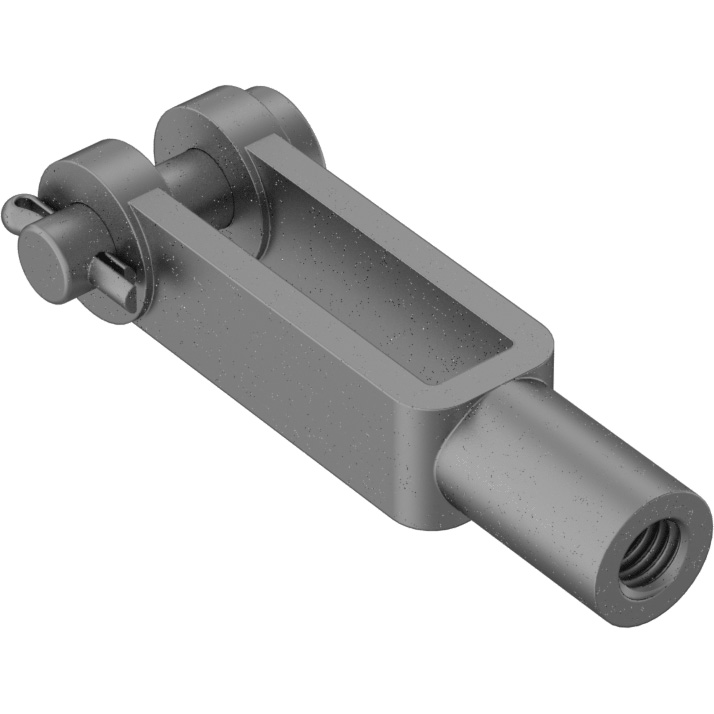

These steel rod ends are machined to SAE standards. Also called yoke-end linkages, they support pivoting movement along one axis when threaded onto shafts, rods, valve pistons, and other assemblies. |

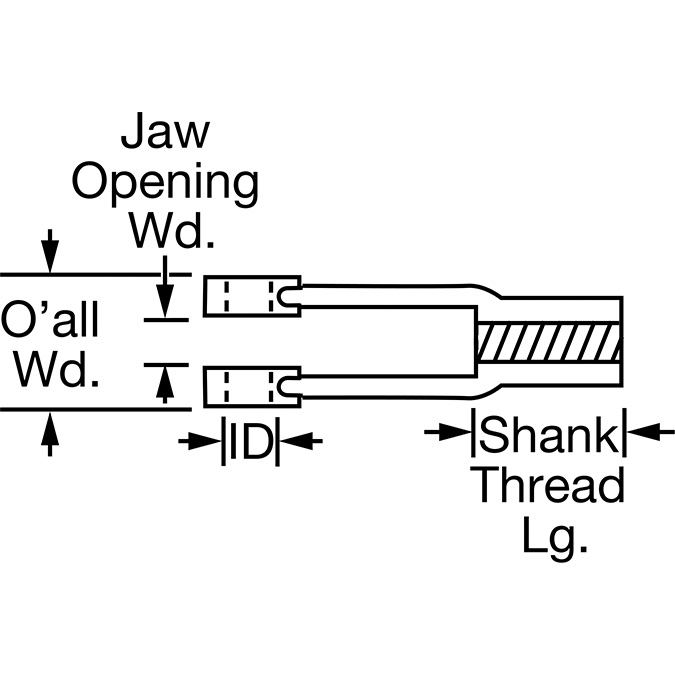

Shank Thread Size | Oct-32 |
---|---|
ID | 3/16" |
Jaw Opening Width | 3/16" |
Overall Width | 7/16" |
Shank Center Length | 1 9/16" |
Shank Thread Length | 9/16" |
Jaw Center Length | 1" |
Tensile Strength | 58,000 psi |
Material | Carbon Steel |
Rod End Type | Clevis |
Includes | Clevis Pin, Cotter Pin |
Shank Threading | Fully Threaded |
Shank Gender | Female |
Shank Thread Direction | Right Hand |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | Peoples Republic of China |
Schedule B | 848330.8055 |
ECCN | EAR99 |
Standard part.

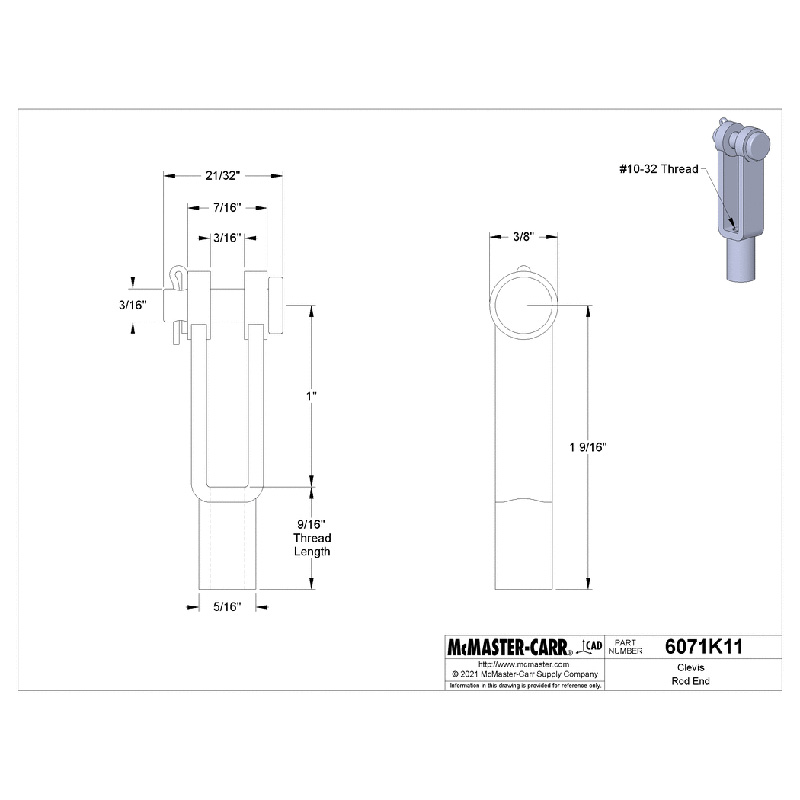

Clevis Rod End, 10-32 Thread, 1-9/16 Shank
