Camloc 2600 Wing Studs

From $26.75 to $157.75
Type Description Part No. Price Buy
Cad PlatedCamloc Wing Stud
2600-2W
$40.70
Quantity
Cad PlatedCamloc Wing Stud
2600-3W
$27.95
Quantity
Cad PlatedCamloc Wing Stud
2600-4W
$26.75
Quantity
Cad PlatedCamloc Wing Stud
2600-5W
$36.50
Quantity
Cad PlatedCamloc Wing Stud
2600-6W
$32.50
Quantity
Cad PlatedCamloc Wing Stud
2600-8W
$69.75
Quantity
Cad PlatedCamloc Wing Stud
2600-9W
$157.75
Quantity
Cad PlatedCamloc Wing Stud
2600-10W
$43.65
Quantity
Cad PlatedCamloc Wing Stud
2600-12W
$45.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

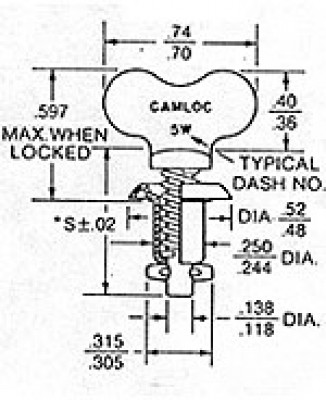

2600/2700 STUD LENGTH SELECTION
Total material thickness “G” consists of the thickness of all materials to be fastened. This must include the thickness of the material “P” to which the stud assembly is attached, the material “F” to which the receptacle is attached plus gaskets (if used) and allowance for paint or other protective finishes. If the total thickness is near the upper limit of the stud grip range, the next longer stud should be used. This will still maintain positive locking of the fastener under vibration.

P (panel thickness)..................... .062
F (frame thickness................... + .062
GRIP (total thickness).............. = .124


STUD SELECTION TABLE
Using 212-12 Receptacle
Total Grip Thickness
Use 2600
Use 2700
.021-.059
2600-1
2700-1
.060-.089
2600-2
2700-2
.090-.119
2600-3
2700-3
.120-.149
2600-4
2700-4
.150-.179
2600-5
2700-5
.180-.209
2600-6
2700-6
.210-.239
2600-7
2700-7
.240-.269
2600-8
2700-8
.270-.299
2600-9
2700-9
.300-.329
2600-10
2700-10
.330-359
2600-11
2700-11
.360-389
2600-12
2700-12
.390-.419
2600-13
2700-13
.420-.449
2600-14
2700-14
*4002-G grommet requires .090" minimum grip.


2600, 2700 SERIES RETAINING WASHER
Retaining washers are required for studs of -5 length or greater. Use split washer 2600- SW2 where it is desirable to have the stud fall away for minimum internal projection. Use internal tooth washer 2600-LW where it is desirable to retain the stud assembly rigidly.
PN 2600-SW-2
PN 2600-LW

2600, 2700 SERIES RETAINING WASHER
Rivet Holes
2600, 2700 Series Part No.
Plain
212-12N
Countersunk
212-12ND
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Worked as advertised. Used to attach my lower cowling induction to the carburetor on my C-182D.

Manuel F Verified Purchase

2600-8W Camloc Cadmium Wing Stud

November 12, 2024

Thomas S Verified Purchase

2600-12W Camloc Cadmium Wing Stud

May 11, 2024

Excellent product. It fit perfectly and was just what I needed.

James B Verified Purchase

2600-5W Camloc Cadmium Wing Stud

April 25, 2024

Works fine. Stupid expensive

Douglas P Verified Purchase

2600-2W Camloc Cadmium Wing Stud

March 2, 2023

A little confusing on sizes. I guessed correctly the first time. Installed four on the fuel covers. Work as expected.

Leonard J Verified Purchase

2600-5W Camloc Cadmium Wing Stud

December 22, 2022

This is the camloc for a 172L winterkit.

Timothy C Verified Purchase

2600-6W Camloc Cadmium Wing Stud

December 15, 2022

Customer service is very friendly, web site easy to navigate, order was shipped and received as expected. No issues with the parts.

Kbr
December 31, 2020

Arrived on time and worked great for my application

Herzog
December 17, 2020

easily installed and nice application for the hinged lid I needed access from

Bruce B
September 4, 2020

As always, All good

David H
July 27, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do these camlocs come with the attaching washer? Do you sell only the washer?

The retainers washers are sold separately. We offer a split ring retainer, p/n 2600-SW-2, and an internal tooth retainer p/n 2600-LW.
