- Photo may represent series and not specific product
- SHARE
| Description | Part Number | Price | Buy |
|---|---|---|---|
| Acrolite Info Pack | 01-20005 | ||
| Plans Kit (Includes Plans, Builders Manual, Maintenance Manual, Photo Set) | 01-20090 | $447.00 | |
| 1B Manuals CD | 01-00680 | $7.50 | |
| 1B Plans Only | 01-00681 | $443.00 | |
| Kit #1 Aluminum Tube Kit Click Here for Kit Components | 01-20010 | $2494.00 | |
| Kit #2 4130 Tube Kit Click Here for Kit Components | 01-20015 | $4175.00 | |
| Kit #3 Aluminum Sheet and Bar Kit Click Here for Kit Components | 01-20020 | $1062.00 | |
| Kit #4 4130 Sheet and Bar Kit Click Here for Kit Components | 01-20025 | $3153.00 | |
| Kit #5 Aluminum Wing Kit Click Here for Kit Components | 01-20030 | $4822.00 | |
| Kit #6 Misc. Wood Kit Click Here for Kit Components | 01-20035 | $440.00 | |
| Kit #7 Wood Wing (Optional) Click Here for Kit Components | 01-20040 | $5909.00 | |
| Kit #8 Fastener Kit | 01-20045 | $541.00 | |
| Kit #9 Control System Kit Click Here for Kit Components | 01-20050 | $1961.00 | |
| Kit #10 Fuel System Kit Click Here for Kit Components | 01-20055 | $1155.00 | |
| Kit #11 Misc. Hardware Kit Click Here for Kit Components | 01-20060 | $235.95 | |
| Kit #12 Wheels and Brakes Click Here for Kit Components | 01-20065 | $579.00 | |
| Kit #13 Misc. Accessories Kit Click Here for Kit Components | 01-20070 | $1101.00 | |
| Kit #14 Basic Instruments Kit Click Here for Kit Components | 01-20075 | $3443.00 | |
| Kit #15 Covering Kit Click Here for Kit Components | 01-20080 | $2029.00 | |
| Kit #16 Cowl Kit Click Here for Kit Components | 01-20085 | $333.00 |
Overview
|

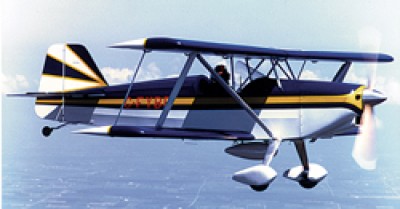

We are the exclusive supplier of plans and materials packages for Ron Wilson's aerobatic aircraft design, the single seat Acrolite. Complete construction material packages for the Acrolite (16 total) can be purchased for under $10,000. The Rotax 912 engine is used in the prototype. The Acrolite can also be built with the Rotax 532-618. |
Specifications
- Kit Price Without Engine: ~$7,500
- Plans Price: $300
- Number of Seats: 1
- Building Materials: N/A
- Building Time: ~2000 Hours
- Standard Engine: Rotax 912
- Horsepower: 55-112
- Wing Span: 20'
- Wing Area: 133 sq ft
- Empty Weight: 495 lbs
- Gross Weight: 750 lbs
- Takeoff Distance: 500'
- Landing Distance: 500'
- Cruise Speed: 110 mph
- Top Speed: 130 mph
- Fuel Capacity: 8 Gallons
- Range: 250 miles
Info Pack
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
