- Photo may represent series and not specific product
- SHARE
| Description | Part Number | Price | Buy |
|---|---|---|---|
| Sonex Quickbuild - Wing Hardware Kit Click Here for Kit Components | 01-01234 | $554.00 | |
| Sonex Quickbuild - Fuselage Hardware Kit Click Here for Kit Components | 01-01235 | $791.00 | |
| Sonex Standard Build - Wing Hardware Kit Click Here for Kit Components | 01-00005 | $846.00 | |
| Sonex Standard Build - Fuselage Hardware Kit Click Here for Kit Components | 01-00008 | $1552.00 | |
| Sonex Standard & Quick Build - Tri-Gear Kit Click Here for Kit Components | 01-00006 | $117.75 | |
| Sonex Standard & Quick Build - Tail Dragger Hardware Kit Click Here for Kit Components | 01-00009 | $38.50 | |
| Sonex Standard & Quick Build - Controls Hardware Kit Click Here for Kit Components | 01-01082 | $487.00 |
Overview
|

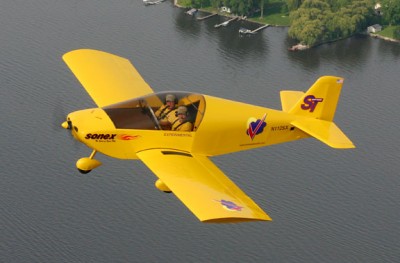

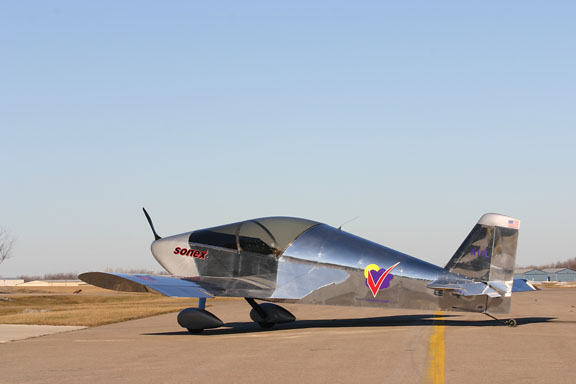

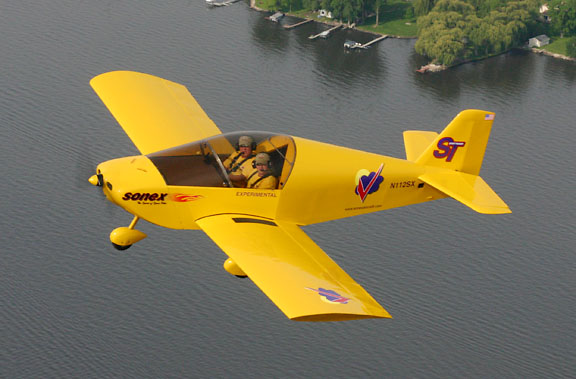

Unique in design, the Sonex is a basic and economical all metal two-place monoplane. Both taildragger and tri-gear versions are available. The Sonex is 17.5 ft. in length and has a 22 ft. wing span. It features easily removable wings for transport and storage. Designed to meet the needs of both European and domestic aviators, it can incorporate various lightweight contemporary engines of 80-120hp (under 200 lbs. firewall forward). Suggested engines include the 2180 VW and 80-120hp Jabiru engines. Outstanding performance is achieved through its clean aerodynamic shape and simple, lightweight construction. More information on the Sonex can be obtained by contacting: |
Specifications
- Kit Price Without Engine: ~$15,000
- Plans Price: $750
- Number of Seats: 2
- Building Materials: M
- Building Time: ~700 Hours
- Standard Engine: VW 2180CC 120HP
- Horsepower: 80-120
- Wing Span: 22'
- Wing Area: 98 sq ft
- Empty Weight: 620 lbs
- Gross Weight: 1100 lbs
- Takeoff Distance: 400'
- Landing Distance: 500'
- Cruise Speed: 130 mph
- Top Speed: 197 mph
- Fuel Capacity: 16 Gallons
- Range: 550 miles
