- Photo may represent series and not specific product
- SHARE
| Description | Part Number | Price | Buy |
|---|---|---|---|
| Waiex Fuselage Hardware Kit Click Here for Kit Components | 01-01130 | $2089.00 | |
| Waiex Control Hardware Kit Click Here for Kit Components | 01-01131 | $498.00 | |
| Waiex Wing Hardware Kit Click Here for Kit Components | 01-01132 | $806.00 | |
| Waiex Taildragger Hardware Kit Click Here for Kit Components | 01-01165 | $113.75 |
Overview
|

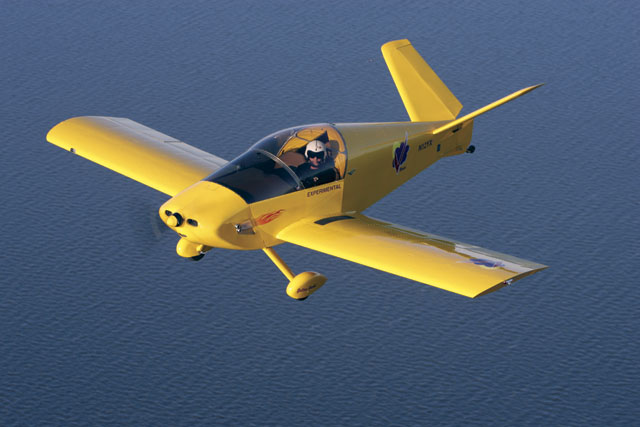

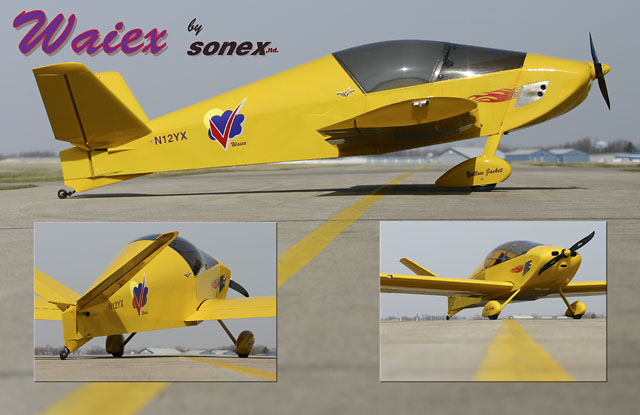

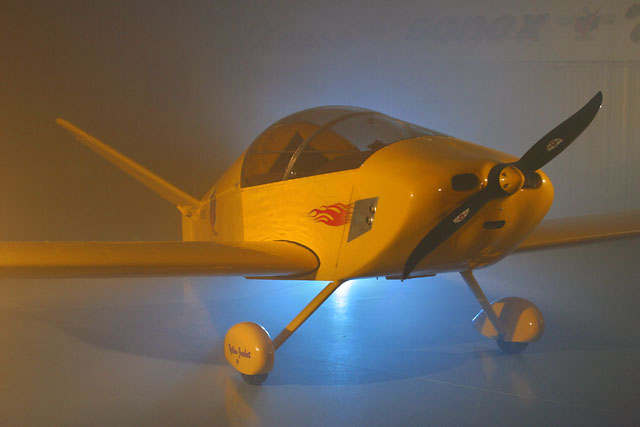

WAIEX (pronounced "Y-X") is simply a Y-tail Sonex. Built purely for it's good looks and as an homage to earlier John Monnett designs such as the Moni and Monex Racer, the Waiex specifications and performance numbers are identical to those of the Sonex and, like the Sonex, is perfectly suited to the new US Sport Pilot/LSA regulations. The Waiex retains the same superb Sonex flight characteristics and high performance in all phases of flight, including aerobatics. If you're looking for the ultimate high-performance recreational aircraft with maximum ramp-appeal, the Waiex is for you. More information on the Waiex can be obtained by contacting: |
Specifications
- Kit Price Without Engine: ~$15,000
- Plans Price: $750
- Number of Seats: 2
- Building Materials: M
- Building Time: ~700 Hours
- Standard Engine: VW 2180CC 120HP
- Horsepower: 80-120
- Wing Span: 22'
- Wing Area: 98 sq ft
- Empty Weight: 620 lbs
- Gross Weight: 1100 lbs
- Takeoff Distance: 400'
- Landing Distance: 500'
- Cruise Speed: 130 mph
- Top Speed: 197 mph
- Fuel Capacity: 16 Gallons
- Range: 550 miles
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Most of these hardware kits are in stock in our regional warehouses. Any lead times will be displayed once the items are added to the shopping cart.
