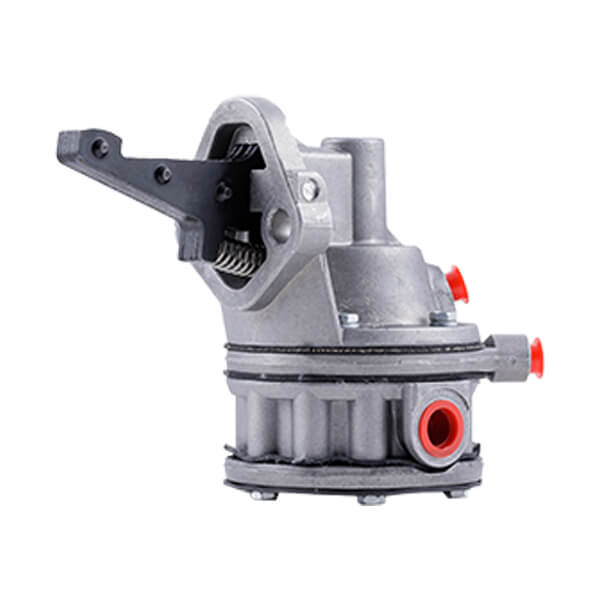

- Photo may represent series and not specific product
- SHARE
| MMO | Description | Part No. | Price | Buy |
|---|---|---|---|---|
| R00253-1 | 1/4 NPT Ports Low Pressure 4 - 6 PSI | 05-02549 | $1833.00 | |
| R00253-2 | 9/16 - 18 Ports Low Pressure 4-6 PSI | 05-02551 | $1833.00 | |
| R00253-501 | 9/16 - 18 Ports High Pressure 24 - 30 PSI | 05-02552 | $1858.00 | |
| R00253-502 | 1/4 NPT Ports High Pressure 24 - 30 PSI | 05-02554 | $1833.00 | |
| 103396-01 | 9/16 - 18 Ports Low Pressure 4 - 6 PSI | 05-02542 | $1940.00 | |
| 103586-01 | 9/16 - 18 Ports High Pressure 25 - 30 PSI | 05-02543 | $1940.00 |
Overview
|
In the 1970's, RayJay Corporation, Inc. acquired several STC's for turbo normalizing installations on certain aircraft. These pumps are distinguished from standard AC/Lycoming fuel pumps by the presence of an upper deck reference port modification on the pump body. The manufacturer has developed an FAA Approved overhaul process to support a limited number of the RayJay models.
Note: Customer will need to provide core for overhaul in the event our supplier does not have cores available to overhaul. Additional core charge will apply. Please add pump to cart to see current applicable core charge. |
Application Chart
| RAJAY TURBO APPLICATIONS | ||||
|---|---|---|---|---|
| Mfg/Model | Ports | Pressure | Description | Application |
| 103586-01 | 9/16X18 PORT THREADS | 25 TO 30 PSI | Short channel rocker arm with upper deck reference port. | Used with HI PSI RAJAY Turbo Applications. |
| 103396-01 | 9/16X18 PORT THREADS | 4 TO 30 PSI | Short channel rocker arm with upper deck reference port. | Used with LOW PSI RAJAY Turbo Applications. |
| R00253-501 | 9/16X18 PORT THREADS | 24 TO 30 PSI | Short riveted rocker arm with upper deck reference port. | Used with HI PSI RAJAY Turbo Applications. |
| R00253-502 | 1/4 NPT PORT THREADS | 24 TO 30 PSI | Short riveted rocker arm with upper deck reference port. | Used with HI PSI RAJAY Turbo Applications. |
| RJ4033 | 1/4 NPT PORT THREADS | 4 TO 6 PSI | Short riveted rocker arm with upper deck reference port. | Used with LOW PSI RAJAY Turbo Applications. |
| OR | ||||
| 9/16X18 PORT THREADS | ||||
| R00253-1 | 1/4 NPT PORT THREADS | 4 TO 6 PSI | Short riveted rocker arm with upper deck reference port. | Used with LOW PSI RAJAY Turbo Applications. |
| R00253-2 | 9/16X18 PORT THREADS | 4 TO 6 PSI | Short riveted rocker arm with upper deck reference port. | Used with LOW PSI RAJAY Turbo Applications. |
